Festool Domino DF 500 Q: Precision Joinery for Custom Builds

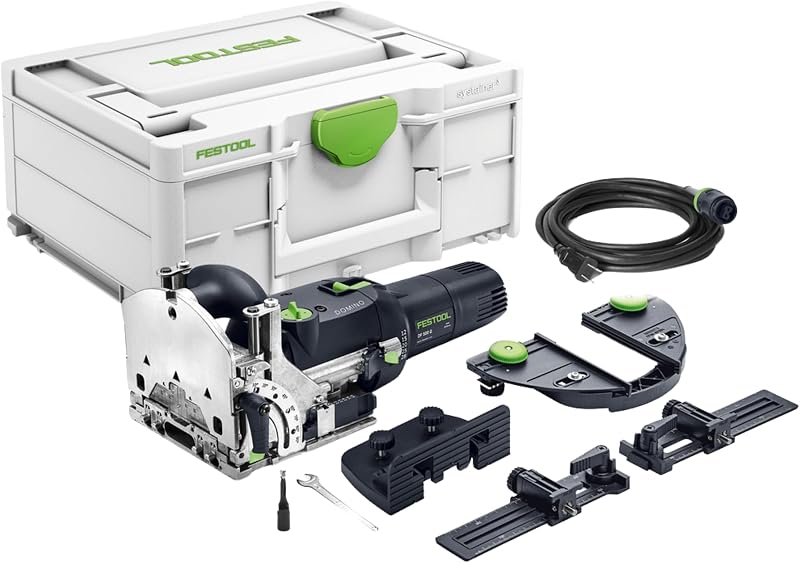

The Festool Domino Joiner DF 500 Q arrives packaged in a protective storage container designed to secure the tool body alongside its dedicated alignment attachments. Festool supplies the primary mortiser along with several workpiece registration accessories right out of the box, allowing you to establish repeatable spacing on narrow stock and broader edge joints immediately.

• Festool Domino Joiner DF 500 handheld tool body
• Festool D5 (5mm) cutter pre-installed in the spindle
• Festool Trim Stop for stabilizing narrow moldings and thin stock
• Festool Cross Stop for repeated, equal mortise spacing without manual measuring
• Support bracket for broader contact surface stability
• Open-ended wrench for cutter installation and bit changes
• Plug-It detachable power cord
• SYS3 M 187 Systainer hard-shell storage case

A detailed review of the manufacturer specifications highlights the internal power, construction materials, and physical parameters of the Festool Domino DF 500 Q.

Traditional wood joinery often forces makers to choose between speed and mechanical strength. Biscuits provide fast alignment but little structural support, while dowels can twist under torque. The core innovation of the Festool Domino DF 500 Q lies in its patented cutting motion, which combines high-speed bit rotation with a synchronized horizontal oscillation. Operating at 24,300 rpm, the 3.5-amp corded electric motor drives the bit into the timber while sweeping it side to side. This creates an elongated, clean mortise with rounded ends in a single, smooth plunge action without tearing the wood fibers or burning the internal walls of the pocket.

Because the bit simultaneously spins and sweeps, the tool eliminates kickback during entry. The user experiences minimal vibration through the aluminum housing, making it significantly easier to maintain absolute registration on critical reference lines. For entertainment console builds where multiple horizontal dividers meet wide vertical uprights, this motion ensures that each mortise is uniform in depth and free of chip packing. Producing clean mortises quickly allows woodworkers to mill their raw lumber with high-precision planers such as the dewalt 735x planer and move straight into final joinery without second-guessing joint tolerance.

The resulting pockets accept pre-formed, compressed beech or sipo tenons that provide immense glue surface area and high tensile strength. This structural profile resists twisting along the grain, making the system ideal for load-bearing applications like monitor bridges, custom sim racing cockpit chassis, and deep server enclosures. The mechanical repeatability of the oscillating mortise cutter removes the trial-and-error cycle of shaving tenons or re-drilling out-of-square dowel pockets.

Achieving flawless alignment across large wood surfaces can be challenging when wood movement or minor layout variances occur. The Domino mortise width adjustment directly solves this common woodworking headache through a stepped rotary dial located on the top of the machine housing. This dial alters the side-to-side sweeping stroke of the cutter while maintaining the exact center point and plunge depth, giving the operator instant control over joint clearance without requiring a bit change.

The system offers three distinct mortise width settings. In practical furniture assembly, woodworkers typically set the first mortise on the narrowest setting to establish a snug, unyielding reference point that locks the two workpieces into exact lateral position. Subsequent mortises along the length of the board are then cut using the wider settings. This provides lateral wiggle room for the loose tenons while preserving height alignment, allowing glue and tenons to slide into place effortlessly without fighting minor measuring discrepancies. If you incorporate bespoke engraved plates or custom panels using tools like the x tool m2 color craft laser cutter and engraver, this precise registration ensures that structural frames square up perfectly around decorative inserts.

In addition to width adjustment, the DF 500 features retractable mechanical indexing pins integrated directly into the front face of the reference fence. These pins allow you to reference directly from the edge of a board without measuring or drawing pencil lines. By hooking the indexing pin against the corner of your stock, you can plunge matching reference mortises into mating pieces in seconds. When moving down longer panels, the included Cross Stop attachment mounts to the base to establish uniform spacing across large glue-ups, providing exceptional Domino DF 500 joinery precision across expansive tabletop projects.

Custom entertainment centers and modern studio furniture frequently incorporate non-standard geometry, such as beveled corner pillars, acoustic baffles, and angled gaming desk skirts. The Festool Domino DF 500 Q accommodates complex geometry using an integrated pivoting fence constructed from machined aluminum. The fence adjusts smoothly from 0 to 90 degrees, enabling operators to plunge mortises directly into mitered edges and compound face frames.

To accelerate setup and prevent angular drift during high-volume cuts, the fence mechanism features positive mechanical stops at 22.5 degrees, 45 degrees, and 67.5 degrees, alongside the standard perpendicular 90-degree position. These positive stops eliminate the need for secondary angle gauges when cutting standard miter joints for framed shadowboxes or four-sided monitor enclosures. The locking lever secures the fence solidly against the cast body, ensuring that continuous downward plunge force does not shift the selected angle midway through a cut.

Stepped height adjustment on the fence face allows you to quickly position the cutter centerline relative to standard stock thicknesses. By aligning the height stop with the thickness of your material, the mortise is placed cleanly in the meat of the board, preventing blowouts on delicate visual surfaces. For makers who often keep compact multi-tools like the leatherman rev multi-tool nearby for quick workshop adjustments, the tool-free locking levers on the DF 500 fence deliver comparable convenience without requiring external wrenches for basic setup tweaks.

Operating a high-speed mortising tool indoors or in a compact garage workshop creates substantial volumes of fine chips and airborne debris. The DF 500 Q tackles this with an integrated 1.06-inch dust extraction port that channels shavings directly away from the cutter head. Because the cutting bit oscillates inside an enclosed cavity, hooking the tool to a high-efficiency dust extractor is virtually mandatory to prevent chips from clogging the mortise and overheating the bit.

When paired with an active workshop extractor, the evacuation through the 1.06-inch port is exceptionally thorough, drawing chips out through internal channels as soon as the cutter bites into the stock. Clear mortise cavities ensure that each plunge reaches its intended mechanical stop without bottoming out against accumulated sawdust. Keeping the work surface free of chips also guarantees that the faceplate sits dead flat against the reference face of the lumber, preserving joint accuracy across dozens of plunges.

The unit incorporates Festool’s proprietary Plug-It cord system, which uses a detachable, locking power cable that connects directly to the tail of the tool. This cord interchanges with other corded tools in the manufacturer’s lineup, reducing benchtop cable clutter. The tool body weighs 13.2 pounds, giving it substantial physical presence that dampens motor vibration, though the overall weight does require two hands for stable horizontal and vertical operation.

Pros

Check Festool Domino DF 500 Q on Amazon

Determining whether the Festool Domino DF 500 Q justifies its position in your tool collection depends heavily on the volume and nature of the furniture builds you produce. For high-end makers crafting custom studio desks, gaming battle stations, cabinetry, and solid-hardwood tables, this tool compresses hours of traditional joint cutting into minutes. The strength of the resulting loose tenon joints rivals mortise-and-tenon craftsmanship while offering the rapid workflow of a standard plate joiner. When evaluated purely on time savings and structural reliability, the Festool Domino DF 500 for furniture making is an exceptional investment that elevates the build quality of finished projects.

However, the machine does present practical compromises that potential buyers must evaluate. The listing specifies that the DF 500 only includes the 5mm cutter pre-installed from the factory. If your builds require larger 6mm, 8mm, or 10mm tenons for heavier architectural components, those additional cutters and tenon assortments must be obtained separately. Furthermore, at 13.2 pounds, the tool is robust and relatively heavy, making it less convenient for fast, casual utility tasks where a lightweight hand tool or standard mechanical fasteners would suffice.

If you build furniture occasionally or focus on simple plywood boxes assembled with pocket screws, the specialized capabilities of the DF 500 may exceed your everyday needs. But for serious hobbyists and dedicated woodworkers who refuse to compromise on joint strength, seamless alignment, and long-term durability, the DF 500 Q stands as an unmatched joinery solution that transforms how complex assemblies come together.

WORKPRO Premium Utility Knife suits makers who need a rugged, handheld all-metal box cutter for everyday workshop layout tasks, scoring sheet goods, and opening shipments rather than cutting deep structural furniture mortises.

Tough Design folding utility knife multi-pack serves hobbyists seeking colorful, folding box cutters capable of trimming drywall, linoleum, rope, and cardboard around the shop where motorized woodworking machinery is unnecessary.

Snap-off blade box cutters cater to craft makers and hobbyists who require an 18mm retractable razor knife with fresh snapping edges for slicing paper, vinyl, plastic, and leather rather than heavy timber joinery.

What size cutter comes standard with the Festool Domino DF 500 Q?

The listing states that the Festool Domino DF 500 Q package includes only the 5mm (D5) cutter, which comes pre-installed in the spindle of the machine.

Can the fence on the DF 500 handle angled cuts?

Yes. The pivoting fence adjusts through a range of 0 to 90 degrees and includes positive mechanical stops at 22.5 degrees, 45 degrees, and 67.5 degrees for rapid, accurate miter mortising.

What is the diameter of the dust extraction port?

The tool is equipped with a 1.06-inch dust extraction port, designed to integrate with standard extraction hoses to pull chips out of the mortise cavity during operation.

How heavy is the tool during operation?

According to the product specifications, the tool has an item weight of 13.2 pounds, providing a solid, stable base made from aluminum and stainless steel components.

Does this model run on battery power?

No. The Festool Domino DF 500 Q is a corded electric tool powered by a 3.5-amp motor that connects via an included detachable Plug-It power cord.
